Fabricated Metal Letters and Logos

PREMIUM BEAUTY


"WE CRAFT OUR OWN FABRICATED METAL PRODUCTS, SO WE KNOW THEY'RE ALWAYS MADE TRUE."

    Selected by industry giants such as Exxon, J.P. Morgan Chase, IBM and Caterpillar, these fabricated metal letters project strength and stability. Choose from a wide variety of finish options in stainless steel - brushed, polished, titanium coated, or painted.  Fabricated aluminum painted, brushed or anodized.


EXPERTLY CRAFTED

We’ve expanded our metal fabrication capabilities to include structurally robust gauges of aluminum.  In fact, our new line of aluminum fabricated letters presents a solution for larger letter applications where our fabricated stainless steel letter line leaves off, extending custom letter height possibilities from 16” up to an impressive scale of 120” high.


Stainless steel and Aluminum

Fabricated Metal Letters & Logo Finishes

Cast Letters
fab r.png
Titleist-Logo P.png

304 Stainless Steel Finishes

Vibration
Polished
Brushed
Painted
Random Arc
#4 Brushed

Titanium Coated & 316 Alloy Stainless Steel Finishes

Alloy 316
Polished
Satin Gold
Polished Gold
Hairline Copper
Brushed Black
Polished Copper
Polished Black
Medium Bronze
Polished Medium Bronze

Fabricated Stainless Steel Specifications

Stainless Steel Fabricated without Back

back fab r.png
Stainless Steel Sizes:
Size: 2" to 36" tall
Depth: 1/2" to 6" deep
Stroke: Minimum of 3/8" stroke
Mounting: Stud Mounted
Stainless Steel Construction:
Face: 18 gauge - up to 24" tall
         16 gauge - over 24" tall
Return: 24 gauge - up to 24" tall
             22 gauge - over 24" tall
Precision fabricated stainless steel letters, expertly crafted from pre-finished C304 or 316 Alloys. Offering heavy-gauge construction with multiple finish options - all internally secured with lead-free continuous solder joints.  Produced in sizes from 2" tall to 36" tall, in nearly any letter style of your choice.  Return depths from 1/2" to 6" deep.
Produced in a wide range of sizes from 6" to 36" tall, in multiple stainless steel finish options, all lit with one of five LED colors. Halo Lit fabricated letters are produced with a removable can to allow for servicing of LEDs.  In addition, optional detachable studs create a 1-1/2" stand-off, and allow easy removal of letters from the wall.

Stainless Steel Fabricated Halo-Lit

Stainless Steel Halo-Lit Sizes:
Size: 6" to 36" tall
Depth: 1" to 6" deep
Stroke: Minimum of 1" stroke
Mounting: Stud or detachable
                    stud mount
Stainless Steel Halo-Lit
Construction:
Face: 18 gauge - up to 24" tall
           16 gauge - over 24" tall
Return: 24 gauge - up to 24" tall
             22 gauge - over 24" tall
Back: Clear or light diffused Lexan - 0.118" -  0.236" thick
LED Colors:          Red             Green              Blue       Warm White       White
Flat Cut

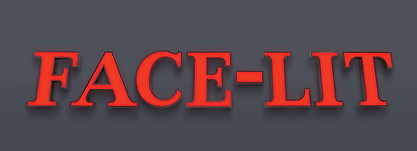

Stainless Steel Fabricated Face-Lit

Stainless Steel Halo-Lit Sizes:
Size: 6" to 36" tall
Depth: 1" to 6" deep
Stroke: Minimum of 1" stroke
Mounting: Stud or detachable
                    stud mount
Stainless Steel Face-Lit
Construction:
Face: 18 gauge - up to 24" tall
           16 gauge - over 24" tall
            Outline: 0.30" - 0.50" wide
Return: 24 gauge - up to 24" tall
             22 gauge - over 24" tall
Back: Stainless steel or Lexan - 0.118" -  0.236" thick
These durable and attractive fabricated stainless steel channel letters with illuminated acrylic faces make a dramatic statement and provide outstanding low-light visibility.  Get the exact combination of daylight and nighttime colors you want with a broad selection of translucent acrylic in letter heights from 6" to 36" tall. The stainless steel return provides a sophisticated look and depth. Choose from poly-carbonate or stainless steel backing with the brilliance of integrated LEDs.
LED Colors:          Red             Green              Blue       Warm White       White
Acrylic Insert Colors:
Available in 7
light diffused 3/16"
acrylic colors.
acrylic swatch png-01.png
